The Big Reveal Day.

greatwallstudiosLeave a Comment on The Big Reveal Day.

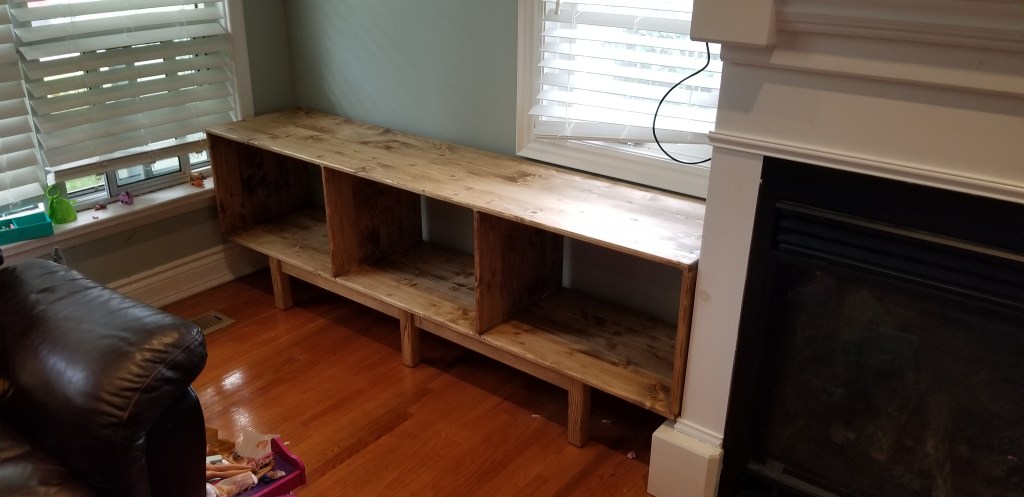

We managed to get a substantial coat of wax on the shelf unit yesterday, and we’ve given it twenty four hours to dry, and now I’m going to bring the shelf unit inside and begin to tidy up the living room and all of the loose toys. We have canvas bins that will fit nicely, so I’ll bung loads of gear into those, and leave the top for dioramas and play sets to get left in situ.

So far so good the wax is dry, and the unit fits in the space. Though I seem to have misjudged the thickness of the baseboard. Most likely due to the quarter round against the floor, which I failed to notice. Oh well. It fits in between the fire place and the front windows, and tucks under the windowsill of the fireplace wall. Fits over top of the fireplace kick out, and does not cover the wall socket/plugs/outlet. I am mostly happy.

Fits in the space, given all of the restrictions. Just not as snuggly against the wall as I was aiming for.

Next steps. Clean and sort toys on the floor into bins and cubby holes, and then sigh a breath of relief that it all works mostly as intended. I may still need to cut a 2″ hole in the top for power cords to more easily access the wall sockets/outlet, but we’ll see.

Looks as though I can get a vacuum underneath it fairly easily, which is a plus with my messy family. Updates to follow, as I get through the last leg of this project. Looks as though with the help of the toy box, and a couple canvas bins I have been able to leave as much playable surface as possible for the kids, and can still access both windows, and not interfere with the floor vent or fireplace. I’ll call that a win!

Floor is now empty of toys – for the minute the kids aren’t here that is!

My only qualm about it now that I’m done, well – beyond one corner not being 90° against the fireplace so the error is very easy to see. Is that I should have put in a second tier to one of the cubbies. Most likely the one with the wall socket contained within. Then I could have used that shelf to store the kids chrome book and have a dedicated charging spot that won’t get bumped or knocked. The shelves are 16 inches deep, so you really have to try to get at something pushed all the way to the back. But whatever. I can build an insert out of plywood for that, if it becomes absolutely necessary.  And to think I sat on this idea and ruminated over it for weeks before I got started. How did I miss a dedicated charging shelf? Idiot. No matter. It’s done, it works, and I’m happy with it. Mostly. For now. To think if I had of made it from Walnut that would have been a $1500.00 job, easily. Just in materials, not even time and effort. It would also weigh about 200lbs if done in Walnut. Using pine cut both costs and overall weight, by an awful lot.

How I see it when seated to watch tv when I’m at home alone. Looks reasonable to me. Yes, I wear crocs, how suave of me.

The Shelf Unit Episode: A Tale Told in 275 parts.

greatwallstudiosLeave a Comment on The Shelf Unit Episode: A Tale Told in 275 parts.

The unit is finally taking shape after a few weeks of lingering on the bench, languishing in stoppage after stoppage. I still have quite a ways to go on it, but progress has been made over the last week.

I hand cut all twelve mortises. Well two of which, the through and throughs, were done on the table saw once I had build a quick & nasty jig to clamp the legs to so as to not put my hands near the blades. But all of the .25″ deep mortises were chiseled out by hand over two or three days. I am currently busy with paid design work. So I’m slow moving with home infrastructure projects.

Hand cut chisel mortises.

Then I completed a dry test fit which lead me to do some last minute rasp work for better fitment. Nothing major. I put the whole base together to test things out which was tricky to do single handed, as my pressure fit mortises are shallow, and I knocked it down a half dozen times tugging on corners that weren’t square. But I got it to stand freely of it’s own accord.

Test fit of first two hand chiseled mortises.
After considerable wrangling I did manage to get the whole base dry fitted together and it stood by itself for 24 hrs without collapsing. A good sign!
You can see here how shallow I cut those mortises. Just a tiny pocket to rest in. So delicate.

Then as of yesterday I began to glue up the cross braces for the base, three pairs of them. Glued and clamped for assembly. No real hassles here. I glue up on my bench over blue plastic garbage bags. Only need to glue a vital piece to your wooden bench once to know never to do it again.

The braces in glue up. One tricky leg needed a set square clamped in place in order to remain 90 degrees. Probably should have done them all like that. Next time!

The top box was formed several weeks ago. Measured, cut, built using a dowel construction method, sanded, glued up, and sanded again. Still needs more sanding and then I can stain both it and the base portion together. Then I will use dowel to connect the two pieces, apply finish and bring it inside.

Fixing a dowel burst on the display surface. Peeled back a strip of pine, chopped out over long dowel, glued and clamped pine strip. Seamless.
In need of about two more hours of focused sanding. Then it’ll be ready for stain & finishing.

I’m excited to see it all come together. I used three 72″L x 16″ W x .75″ H pine laminated boards for the top box. Plus 1.5 72″ x 5″ x .75″ pine boards that I cut down into 2.25″ H strips for stretchers and braces and used along the back of my box to strengthen it against any possible racking. The six legs are made of Ash, and are 1.75″ x 1.75″ x 8″h. That I had laying around from a new set of stairs that got put in at the cottage two years ago. I’ll post a photo once I get it all completed and set in it’s final resting place in our living room.

**UPDATE** I managed to get Walnut tinted Danish Oil stain on the base and shelf portion, as well as put in the dowels to join the top & bottom together. Waiting on the glue to dry as we speak. Last item is a 400 grit scuff followed by some Osmo poly clear wax to pick up the shine/gloss. So excited!

Walnut tinted Danish Oil on the base.
Walnut tinted Danish Oil applied to all of the shelf unit.
Test fit for base placement prior to drilling out and fitting the dowels to join the two pieces. Almost finished. Can see the finish line from here!

The Clip Show Episode we all know and love.

greatwallstudiosLeave a Comment on The Clip Show Episode we all know and love.

Every great show winds up having a clip episode where you get to revisit some of the funniest or most poignant portions of a television show. Usually it’s pretty deep into the later seasons when most of the story arcs are near completion, but they’ve been contractually obligated to provide 22 episodes per season and need to pad one out a bit. So, now I’m going to go through and update some current projects, rather than try to come up with anything new to say.

First off is the Ninja Turtle sculpt. One which I have worked up and torn back down three times so far. I’ve since decided to work the whole thing in Apoxy Sculpt rather than intermingle with Super Sculpey firm. The self drying, uber sticky substance is pretty wild. I’m not going to lie, I struggle with it. I don’t typically sculpt for hours on end, so staying with the apoxy as it gets slightly stiffer to rework it isn’t what I’m doing. I should change my working style to meet the medium, but I haven’t,  so I may not. At least where this turtle is involved. It’s in very rough form, but it has a full body, arms and head. The feet are going to appear to be in standing water, so they are just lumps for the most part. Needs a lot of refining, smoothing and details yet. A work in progress that could take a few dedicated days to finish, or at my current pace, two more months in dribs and drabs.

The second project update is the shelving unit being built using dowel construction instead of my usual mitered box corners, or box joints. So a shit tonne of butt joints. Bland, but hopefully sturdy. So far so good. The plans I drew up call for eight inch high legs, and the outer most dimensions of the top box to be sixteen inches high and seventy two inches wide, by sixteen inches deep. All made with three quarter inch Pine. Except for the 1.75″ x 1.75″ x 8″ Ash legs or feet. It should stand twenty four inches tall, which gives me a quarter inch of room to slot in under the window sill. My true goal is to have the final build meet the pre-determined spec’s on the drawings, without having made any major edits on the fly. Not that that is a deal breaker, but if I can get better at building to plans that would make me happier. It’s pretty humid around here, so warped wood is something I really have to be aware of. Could funge the whole project if I leave it in the shop for too much longer. The top box is cut and dry fitted together, but needs to be sanded, glued, rounded over and stained, and have final finish put on it. I have a ways to go with the base portion. Cut my pieces, and did the round overs on the legs. But I have a lot of mortises to cut. Twelve of them to be exact. I probably need to round over the stretchers along the base too. More work! If I treat it with respect I hope to have a decent looking bit of furniture to have in the living room. Could be a fun reveal if all goes to plan.

The third project, is a doozy. It encompasses the whole house, mainly because it’s my fall clean up as the kids go back to school, and my wife off to work. I started with a bang, cleaned the appliances, counter tops, cabinets, both inside and out. The hall walls, door frames and doors, as well as the base boards. Washed the floors but did not polish them. In socks you’ll fall over and slip if I polish the floors. Lesson learned with bumped knees and one bruised tail bone. Ouch! I have a paper purge coming. I’ll sort the girls best artwork into a binder, and the rest can go to recycling. Between the two kids we have a seventeen inch tall stack of school work just sitting in the dining room. That’s gotta go. Plus I want to purge broken toys, and remove stuff to the cottage, which doesn’t get played with at home. My niece and nephew are both still small, and would love to play with that stuff still. Oh the memories. I got a jump on it, sure. But the real work will start once school starts again next week. I went through their closets, so that too is done, for now. Growing kids, so clothes and shoes will be a consistent issue for years to come. Ha. Lots to do around here.

Lastly is paid work. I have a solid line up of projects between now and November, so I am very happy about that. I have the room to slot in other projects inbetween my planned work, which is handy. And I’m ok if one or two drop off the map until next year. Next year? Yes. Only four months left of 2022, can you believe it!?! Every so often I think about going out and gathering up more clients, and then when I see what I actually have in the pipeline during the summer & fall, I’m glad I haven’t done so. Busy is great, run off my feet is no good. Creativity suffers when I’m too stressed. Have a solid work life balance right now. Love it!

So there it is. The clip show of what’s going on around here. I could mention, though it’s a bit late. That I also have a model kit I built more than a year ago on my desk that needs panel lining and it’s water slide decals placed on it. This thing has more than two hundred decals to place on a twelve inch tall 1/100 Gundam model kit. Going to be at that project for about eight hours or more. Will look great when done, but ugh. That’s a commitment I’m reticent to make right this second. Stuffed in a box in the closet is a much larger 1/60 scale resin kit that needs weeks worth of work. I lean into my model kits over the winter months when my garage is too cold to work in. Keeps me occupied when not working or cleaning, or shoveling snow.

Lastly is the childrens book I wrote and am currently illustrating (poorly I might add). That’s another item I’ll leave for the winter months when I can’t work outdoors. I have eight more background illustrations to complete, and then I need to tackle the two main characters. It fell off the radar, kind of on purpose, but still I’ll be glad when I get it done. Which reminds me. I’m not entirely certain if I will write a third novellas worth of short stories this winter. I never officially published book two on Kindle Unlimited. I probably should do it. Accompany book one so it doesn’t look so lonely. I sold one copy. In the UK. I believe it was to one of my cousins. It was great to write it all, edit it and then collect all those stories together into one unified thing. Felt amazing to have actually done a thing on my bucket list. Now with book two I’ve written more than 100,000 words worth of short fiction. I’m proud of that. Regardless of whether or not it sold any copies.

Ciao Bella!

The ninth and final week of summer vacation is upon us.

greatwallstudiosLeave a Comment on The ninth and final week of summer vacation is upon us.

You knew it was coming, we all did, and it’s happening, right – now. Woah. All those weeks ago this felt miles away, and now that it’s here, we’re already on Tuesday. The youngest had transitional night terror episodes about doing something new, and last night was no different. The camp was full of smiling kids faces, so I knew that they’d have fun, dancing around to music, doing crafts and acting like pretend animals all day long. They even get outdoor time in the a.m. before it gets to swelteringly hot in the late August sunshine and humidity. They practically bolted from the car when they saw a field full of kids their own age, and hula hoops, and kids doing cartwheels and… yeah, they had a lot of fun on day one. Four more days to go until another long weekend. Then a random Tuesday at home, then school.

For as long as that lasts while York Region does nothing preventative about Covid or Monkey Pox. Could be a short lived return. But, this is all next weeks worry. I want the kids to enjoy camp right now, then focus on having one last great summer long weekend before we have to tackle the gods honest truth about the state of our school, school board and all the inherent bs contained within thanks to our MOE. Ugh.

Spirits up, smile on, keep this train a rollin’. The last vestiges of summer are shining that late day amber coloured glow. Trees are starting to turn, or just shed crumpled leaves due to the lack of rain in July & August. The sun sets earlier and earlier, and the evenings have grown rather chilled. You’ve got only four or five more weeks of comfortable sweater wearing evening patio drinking weather ahead of us, before coats will become a necessity. That was a mouthful.

I spent much of last night dreaming about the shelving unit I’m going to build for the front room. Asymmetrical to fit the space, yet maximize the utility. It has to be short to fit under the windowsills, but have playable surfaces for the kids toys. Stained dark and polished to a gloss, even though the kids will most likely scratch the surface immediately. Oh well. I’m using pine, so it’s not like $2000.00 worth of Walnut lumber. I have the pine here. It was to make HP Trunks, but I’d rather use the resources on the family room at the moment. I’ll still have all of the hinges, handles and coloured felt if I go back to making them again. I need to make a 2ft long trunk for my youngest. She only has a novelty box I made that’s 12x6x6″h. Looks the same, but significantly smaller.

I’m going to use lap joints, butt joints and dowels for the utility shelf unit. No dovetails or box joints or mitered corners of the boxes portion. Any kind of panache can be shown on the legs/base portion of the unit. The top box will be pretty straight forward. No funky angles, or design touches. Plain Jane! I need to check and see if my planer still runs, as that might be the defining factor for using my stock of pine, or buying pre laminated boards in a paint grade state. Will look into it later on this morning. Ciao Bella!

Tear out, glue ups & cutting splines.

greatwallstudiosLeave a Comment on Tear out, glue ups & cutting splines.

As much as I love the look of Walnut, it comes with a fair few issues to work through. Namely gouges and tear out during milling, and chunks coming loose when hand chiseling. I will have quite a few places to patch when it comes time to do a final sanding. I need to glue it all up first, then make a Walnut dust paste to patch all of the imperfections. I hope it doesn’t ruin the overall project.

I used packing tape on the outside mitered corners, and painter’s tape on the inside edges of each glue up. See fig 1. And fig 2.

Fig 1. & fig 2.

I used a good amount of LePage glue in the joints, which I spread with an acid brush. I folded it all up into a box, and added additional painter’s tape to the final corner. I used two box clamps and a set square to keep the hollow Walnut box as square as I can get it. See fig 3. And fig 4.

Fig 3. & fig 4.

I also clamped around the middle of the box to make sure it didn’t bulge or have the seams pop open or slide around.

After the box had dried in the 27°C heat of the day for several hours I unclamped the hollow Walnut box and began to cut in my Hickory splines. I chose to do three per corner edge on the top. And depending on how the experience goes, I might add two more on both bottom edges too. I started with a Crown Dovetail saw, cutting just inside my marked lines, and then used a .25″ chisel, cutting along a 45° angle from both the top & bottom to remove the gap where my Hickory splines will rest. If you’re legit, you’d take note of grain orientations and how your boards were sawn, and grain patterns, but I’m just trying to get something done here. Two of the three had good pressure fits, but a possible gap situation might have occured from a too deep of a run with the Dovetail saw. More Walnut dust paste will be needed. See Fig 5 & fig 6.

Fig 7 shows the glued in splines.

I only managed to cut in three splines on one side and glue them in yesterday evening. See fig 7. Once the top panel has three more glued in I can flush cut them off. I added them purely for visual interest and not for strength. Though, they may help in that respect.

I had managed to complete a dry fit test and have it all stand up on its own. I will take that as a win at this point. I know I have several hours of touch ups to do after the build up and assembly is done.

Parts layout. Still so much sanding left to do!

Once I complete the top portion I will shift focus back to the legs and skirting braces. Lots of sanding to do here. I think I will finish it off with some Danish Oil to tie the whole thing together. Ciao Bella!

Throw Back To: Episode of when I took two plus years to build a screen door.

greatwallstudiosLeave a Comment on Throw Back To: Episode of when I took two plus years to build a screen door.

It all started when I was gifted some Ash boards from the family farm, that were rough sawn, and stored in a shed for twenty plus years. I gladly took them home after sawing the sixteen footers in half by hand, and tossing those heavy suckers in my van.

I planed them for what felt like hours, and then had to man handle them across my jointer. Which took forever to do. This was back when I had my tiny 10″ Ryobi table saw, which kicked on full tilt, and scared me to death. Cutting 2 inch thick ash boards that were 80 plus inches in length took some doing, and set my heart to pounding. I settled on four inch wide boards by roughly eighty inches long, and two inches thick.

I then cut down four cross members, two in Ash, and two in a douglas fir that was pretty heavily knotted. It was at this point that I began to run out of warm season, and all my flat, square milled lumber got shut away in the garage for seven months.

The following spring I dug out my lumber, which was still square and decided to hand cut some mortises for the top and bottom of the door uprights. I first used a circular saw to cut two slices through the end grain about four inches deep. This was super sketchy, and my super old school, under powered Kawasaki circular saw died after a cut & a half – twice. So I finished it off with a Stanley hand saw. You know the old kind that weirdos play with a violin bow to make high pitched whiney muzak. I had to climb up on my work bench in order to get this to work.

I gathered up my chisels and a hammer and got dug in cutting away the channel where the cross members would rest. This would prove a difficult and arduous task. It took several days, and my channel was not straight, nor were they even. I took a file to them, and worked that for a few days too. It was at this point that I started to refinish a rocking chair for my very pregnant sister in law, and that took my whole season.

The following year ( this year 2022) I took some rasps to my channels, and evened them out a fair bit. I then used a brand new Dado blade to cut some even tenons for the cross members. It was an endless cycle of dry fit testing, rasping, filing, and planing until I had a suitable snug fit. Then I measured out my center line, and cut out two mortises for the third, and final center cross member. I hugged it out with a forstner bit, then used a multi tool to cut through the rest, and then hand chiseled it to a clear rectangular hole. It worked quite well. After assembling it all as a dry fit, I noticed my angles were all wonky, and then realized my flat, square lumber, was now bowed, and twisting ever so noticeably. But as I was about to begin sanding I hit the most egregious spots with a hand plane, and sort of made the best of it.

I took the time to glue the frame together. Then in each corner I drilled out a 3/8ths hole and glued some dowels through the joints. Flush cut those, and then did endless rounds up through the grits on every single surface of the door. I stopped to add copious amounts of filler, which meant no more natural wood look, but I was now going to have to paint it all white, to match the house trim.

I used an oil based primer to paint on four coats of pristine paint. Then I cut down some Cedar strips, 16 lengths in all, which would sandwich my screen mesh in place, for the two openings on my screen door. After much cutting and sanding i put the first layer in place. Cutting the mesh material was far simpler than i was imagining it would be. So i put those in place, and pin nailed my last strips on, holding the mesh as tight as i could get it.

It was at this point I placed my hardware on the door. Pilot drilling holes for the handle and a push plate. I also then hand cut in my hinge recesses. Drilled and attached those. Fought with the door for an afternoon to cut in the receiving hinge slots on the house, and hung the door single handedly (do not reccomend). I then added backing trim to stop the door swinging too far inwards and binding. Added a latch, and an extra handle, and Bob’s your uncle. Done like dinner.

I didn’t take any photos while cutting the cross member tenons, but they’re there, and I did them myself.

That End Table episode we’re all talking about.

greatwallstudiosLeave a Comment on That End Table episode we’re all talking about.

This time around I thought I’d go a little bit fancy. Which is, or course, a relative term. To me that meant attempting repeatable tapered Hickory legs. Which required me to build a whole new jig/sled to accomplish exactly that. And would you look at that it worked. I was duly impressed with myself.

Then I cut down my skirting, and added a relief to the underside, which recieved a round over, to soften it up a bit. Followed by setting up the dado blade as fat as it’ll go, and cutting the slots for said skirting, and adding the .75″ long tenons to the end of each leg.

I rounded over all four faces to each leg, and did a test fit of the skirting. Wouldn’t you know, three of the four were spot on, and the first was a touch loose. Not a big deal. I can manage.

The glue up of the three Walnut boards to make one large panel was mostly uneventful. I had to joint a bunch of complementary edges, and RIP off the bark, or ruined portions. Use thirteen clamps to wrestle the twist out of the boards. Scrape the excess glue off, and then move through a series of hand planers, and my Bosch electric hand planer to even out the end product. I also took my card scraper for a spin to get a better starting surface once I complete the structural elements and begin the sanding process.

I saw a tutorial somewhere that said for tighter outside edges on a mitered box, you should over shoot 45°, for something like 44.8°. But my table saw doesn’t do that, perhaps a higher priced Cabinet saw would, but mine does not. So a straight 45 it was. Praying for no slips or binding against the fence. We will only know during the glue up.

I used a 1″ forstner bit to hog out the bulk of my mortises. I had intended to chisel out the rest, but I cracked an edge, so had to pause to blow glue into it, and reclamp it. Switched over to a coping saw to save any undue stress on the base piece of Walnut.

I will progress through, 60 / 80 / 100/ 120/ 150 / 220 / 320 grits with an random oribtal sander. Then after I glue up and I need to do touch ups, the very top most surface with get a hand sanding at 400 grit.

After assembly of the hollow top, I will cut in eight (8) splines on all four corners, to add some visual interest. Then round it all over to look a bit cleaner. The tenons of the legs are through & throughs on the base. So a pocket of colour should be seen when you get up close to it. Not finished yet, but you get the gist of it.

Just gonna squeak one in here on ya, if’n you don’t mind.

greatwallstudiosLeave a Comment on Just gonna squeak one in here on ya, if’n you don’t mind.

Had a brain wave the other day about building a walnut side table that was hollow, but could accept the floating bottom walnut drawer I had made a few months ago. Make it tall, on thin Hickory legs, do a thicker walnut skirt, and try a tapered edge on the legs. Round it all over, and then see how close i got to my plans. I’ll draw it out first, and then see if i was actually able to pull it off. That should give me a sense of where i am making my mistakes. I also need to finish by June 30th, before 11:00am, as that’s when schools out for the summer. Pushing against a dead line, and following a plan. Could be fun. But i have a report coming late this week, so that’ll cut into my time significantly. Chop chop, quite literally.

So I have cut up four Hickory legs, the last substantial portion of my slabs. I milled and cut up some rough walnut, and have glued up a single four foot long panel, which will be chopped down into my hollow top. I cut two inch strips for skirting too. I need to figure out a jig for careful, and repeatable tapered legs. Dado out my leg slots to hold the skirting on. I’ll keep the legs poking up above it, to tenon into the hollow top. Then it’ll be round overs on round overs, and sanding until my hands go numb. A quick and easy project.

Walnut skirting and the as of yet un tapered Hickory legs. Followed by a four foot long walnut panel glue up. Didn’t skimp on the clamps this time around.

Here’s how my other table build turned out. Doesn’t look too out of place in the basement. Good height for the sofa that’s there anyway.

The Ninja Turtle is progressing. I like the Apoxie Sculpt, a tad sticky though. But fast to work with. I may still end up detailing it out with Super Sculpey, but for now I’m enjoying the process with Apoxie Sculpt. This could potentially sit for months if need be before I come back to it. I’ll focus primarily on the furniture build, as that can warp, buckle and twist if I don’t build it sooner rather than later. Learned that lesson the hard way with my screen door.

Today is domestic duties Monday, so I need to get the second load of laundry in, run the dish washer, vacuum and tidy up a bit today. I’ll need to sort and hang the laundry too. I hear the temperature is on the rise through this week. Going to feel like 40 °C for several days in a row. Yikes. Also need to get rolling on my youngest child’s birthday party later this week. Busy – busy. Ciao Bella!

The Coffee Table Build Episode.

greatwallstudiosLeave a Comment on The Coffee Table Build Episode.

The one that started out being about turning two book matched Hickory slabs into one monolithic water fall edged table, with a fat & chunky Ash leg on the opposite end. Then I pulled the slabs out from storage and the small one was perfect, and the show piece was cracked in three so badly it snapped in my hands. So new idea. A smaller coffee table using one live edge slab as the top, and the broken pieces of the other as the legs. Then I hated the live edge aspect, and cut it down into a more traditional rectangle. Chopped the Ash chunk into four legs, and decided it was a boring blob of a thing. So I cut skirting, and then I thought, what if I use a Dado to inset the skirting on the interior side of all four legs. After that I figured I should add a drawer that was shallow, and use the skirting to hold up and slide the drawer out, rather than metal drawer slides. Much cheaper option too. Then I thought, well the drawer is so shallow I could build a slatted shelf about 6″ up from the bottom of the legs. I looked at my available raw materials and saw I had to go front to back with six slats rather than across the width. I was hoping to make it look and feel longer by running the open slats across the longer axis, but materials dictated I go otherwise. Not angry. My last vestiges of doubt were on just doing a clear coat vs staining with Danish Oil with a Walnut Tint. I don’t like the bleached look of Ash, so tinted stain we go!  Now once all of this dries I will clear coat with a Varathane brand Diamond spray finish from a rattle can.

I did my glue up in stages to try to offset my amateur hand cut mortises. The tenons I did on the table saw, so I knew they were as good as I could get those. I hand chiseled out a few other odds and ends, but the bulk was done via circular saw on a track, and my Rigid 4512 Table saw. This was the first time I’ve ever used a bow tie to stop a crack. That took some doing, but I don’t hate the end result. I used a flush cut saw to trim off the bulk of the bow tie that sat proud of the table top. Finessed some other over hanging bits with the flush cut saw as well.

Come the fall, I would like to purchase either one long slab or two matching from the same species and actually try a waterfall edge coffee table. I opted for my electric hand planer, and manual hand planes to finish the top surface. I built a router jig out of angle iron to try to flatten the surface of my slabs, but I haven’t yet built the rails/ Saw horses it is meant to stack on top of. I have it ready for next time.

It’s not perfect by any way, shape or form, but I’m slowly getting better at whatever I’m playing at. Should look fine at the cottage or in the basement with my first ever coffee table build from years ago.

Table build progression from raw materials to stained end product. Clear coat finish not shown.

Ooh they do take lovely photos though, don’t they.

greatwallstudiosLeave a Comment on Ooh they do take lovely photos though, don’t they.

I get subcontracted to produce marketing reports on the semi regular (when Covid isn’t being super shitty) and one of the external clients produces some of the most consistently amazing photos that I get to see. I don’t go to these events, but after reviewing the photo sets, oh boy, sometimes it feels like I went. The colours and composition is just fantastic. I tell you, paying a good photographer real money to capture your event is worth its weight in visual gold. You could live off of these photos for weeks if not months, building social media engagement, advertising, internal intranet posts, newsletters and what not. Don’t skimp. Just because most folks can afford an SLR now, doesn’t mean they know how to frame up a shot or get the best out of the available lighting. It makes a real difference when I get photography from a paid professional, vs a bunch of volunteers snapping random shots, that are blurry, poorly composed, or the lighting is flat, too dark, to bright. I can only do so much to remedy that on my end. But these bad mamma jammas are legit. Can’t show none of it to anybody but the client, but woah buddy, you’d like these pictures of the events.

The same thing applies to product photography. Get your shit infront of a professional, don’t try to do it yourself. Or failing a real photographer get the best 3D model/rendering you can afford. Will beat a cell phone image any day of the week. But I digress.

Hot one today. My friend who works in weather forecasting says we have potential for tornadoes in southern Ontario again, today. As well as a wind storm front passing through here tomorrow. Going to be a wild couple of days around here. Hopefully not another Derecho. Because that shit tore through our farm property and did six figures worth of damage is not more. Yikes.

Getting very close to final assembly and glue up of my small multi purpose table. I have a slight issue to fix with the shelf, but otherwise should be good to move forward and complete it sooner rather than later. I also stripped my ninja turtle sculpt back down to the armature. I hated the pose, and then a bunch of stuff was miss proportioned, so as I have no dead line nor client in mind, I took it back down to bare wire, and reposed the armature. Had to drill out new holes, but I’m ok with that. I may add water or sewer features to the base to hide the extra unused holes. A chance for some mixed media materials to be incorporated. Fun times!

I figure I will wait until my turtle is done before I do any painting. My Ogre is baked and based. Ready and waiting on my turtle to get done. Ciao Bella!
